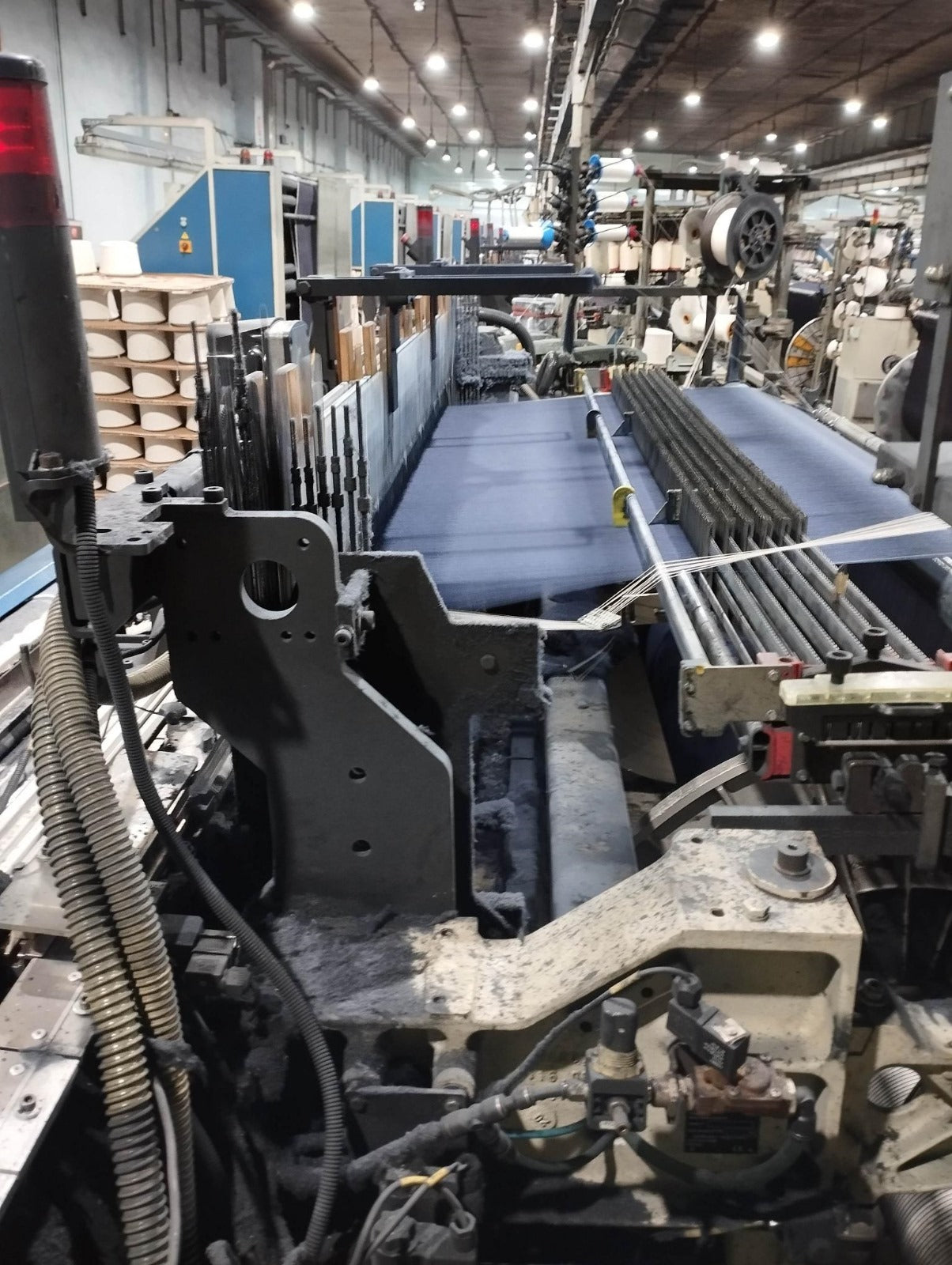

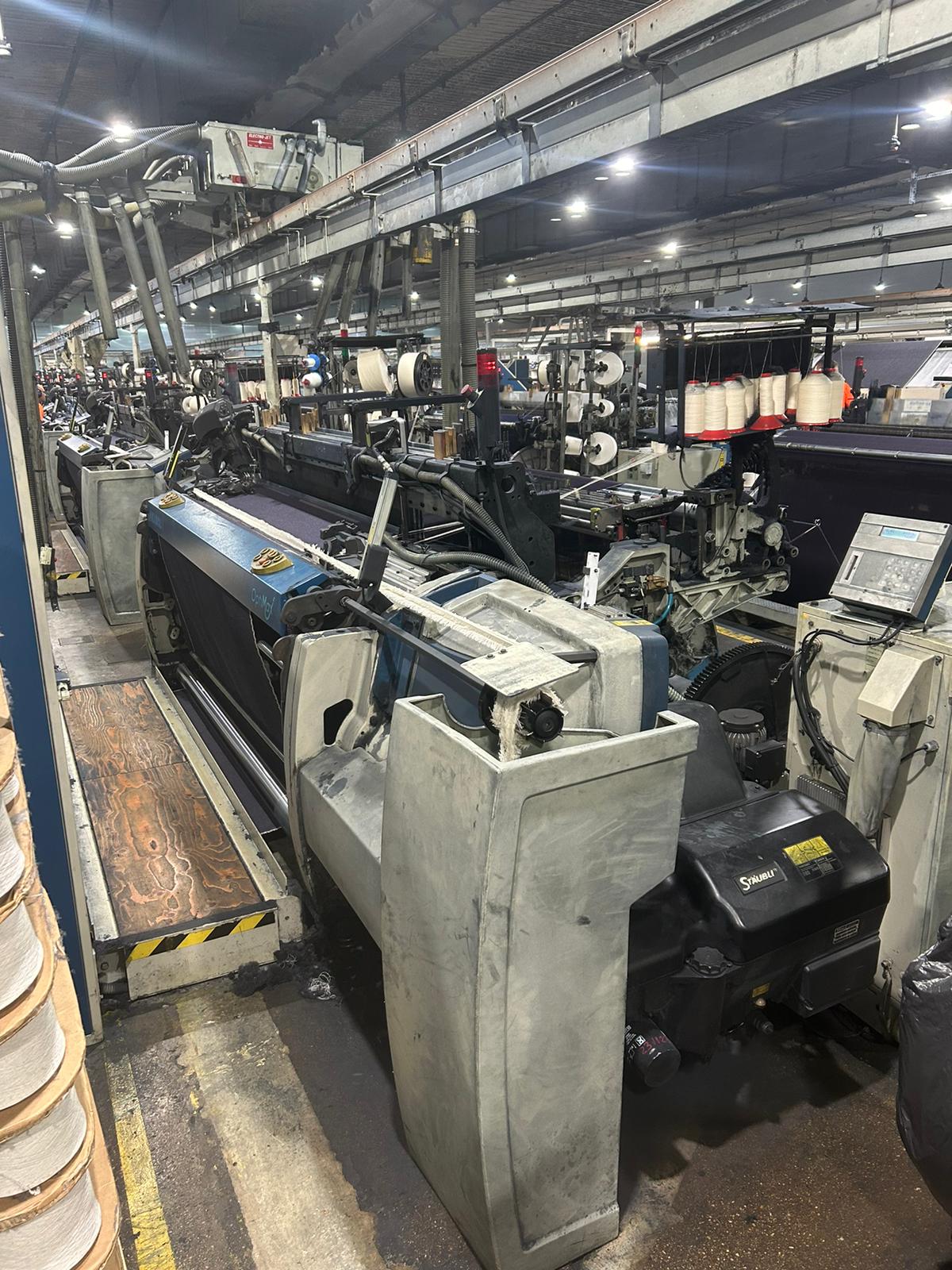

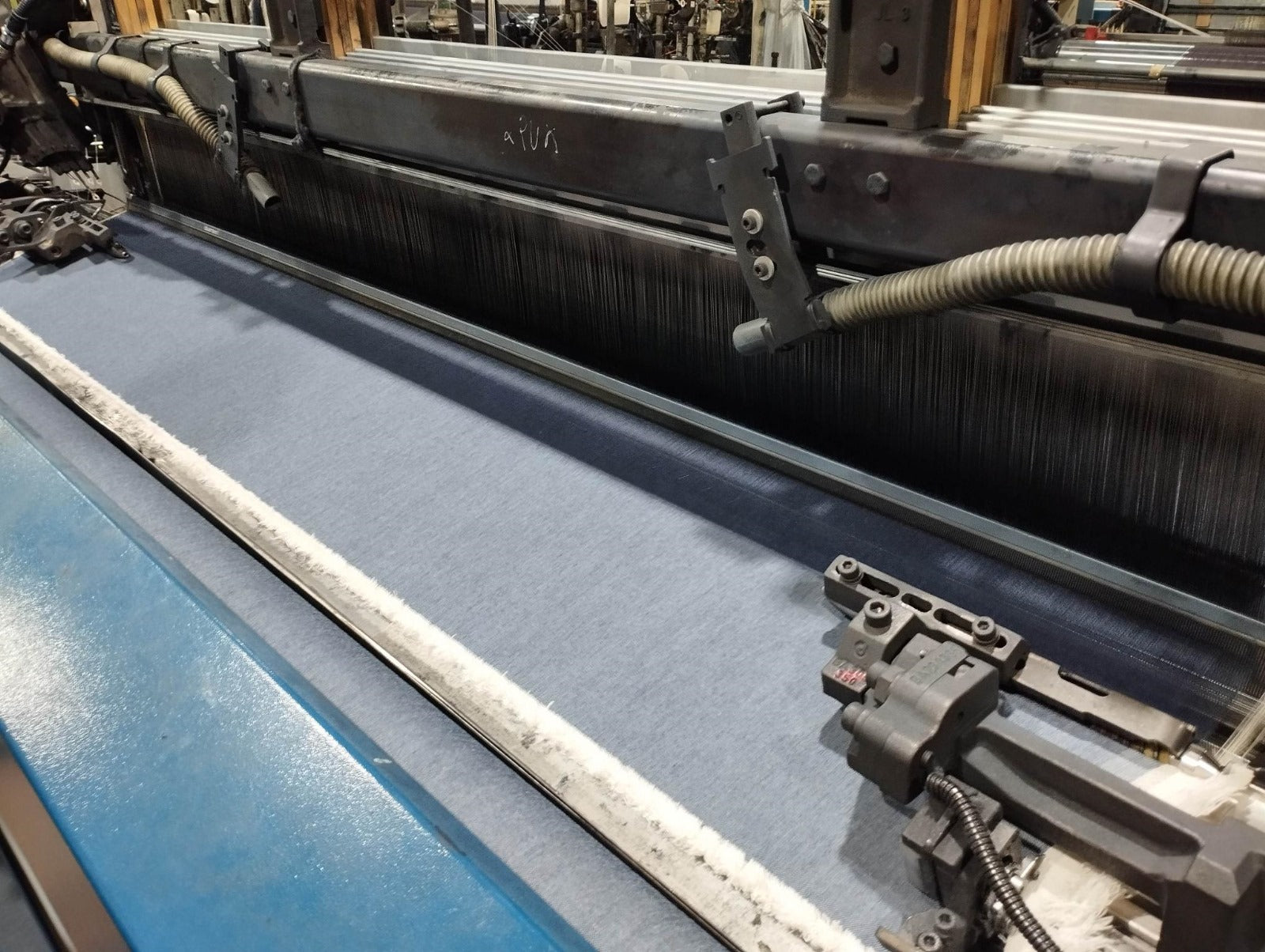

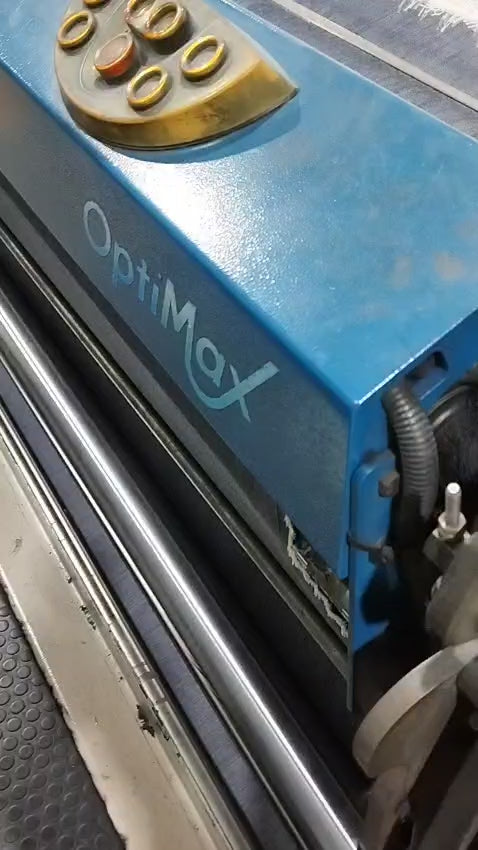

20 x PICANOL OPTIMAX 4R (2013/2014)
20 x PICANOL OPTIMAX 4R (2013/2014)

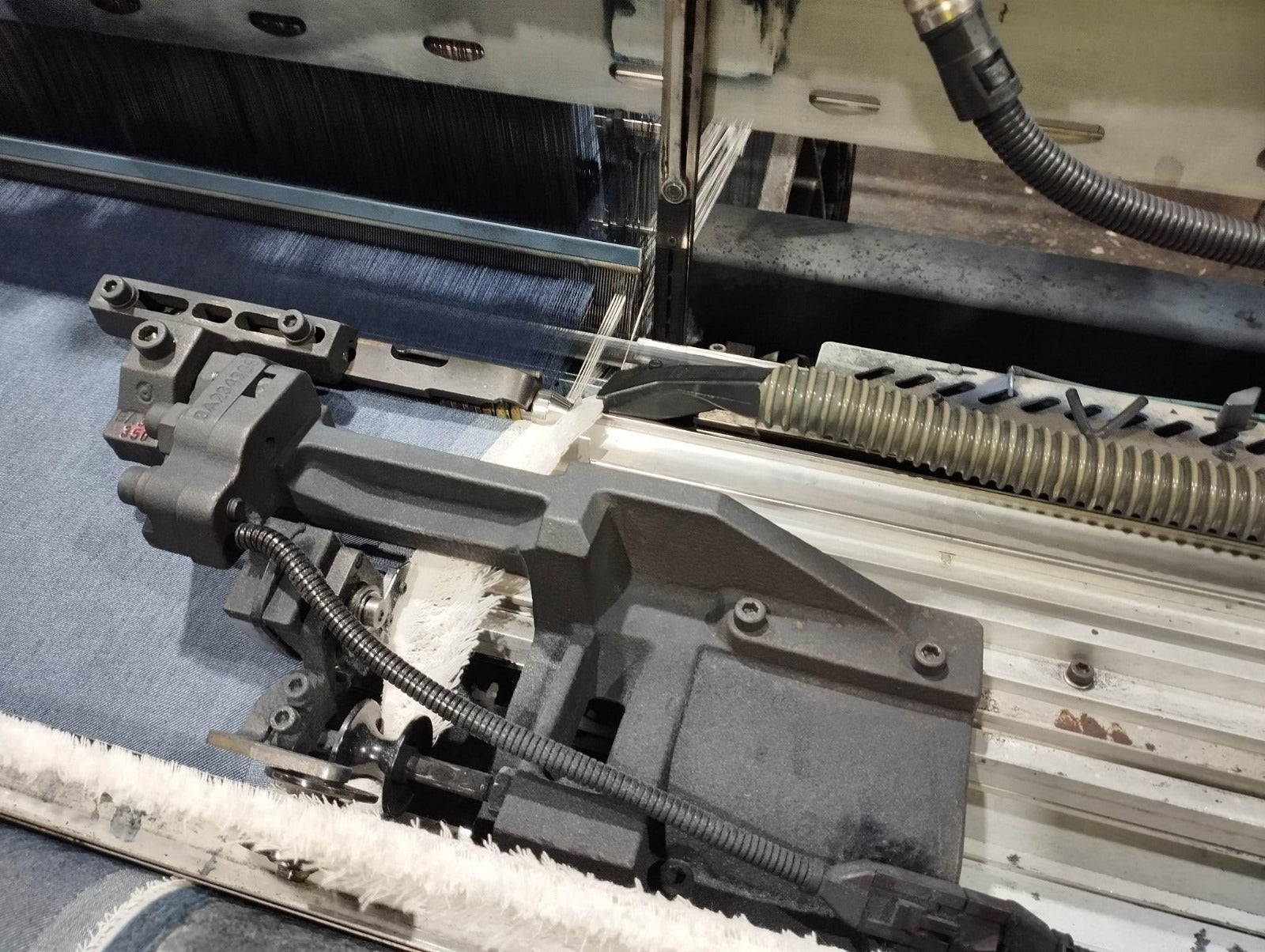

2200 mm weaving width / FREE FLIGHT weft insertion type

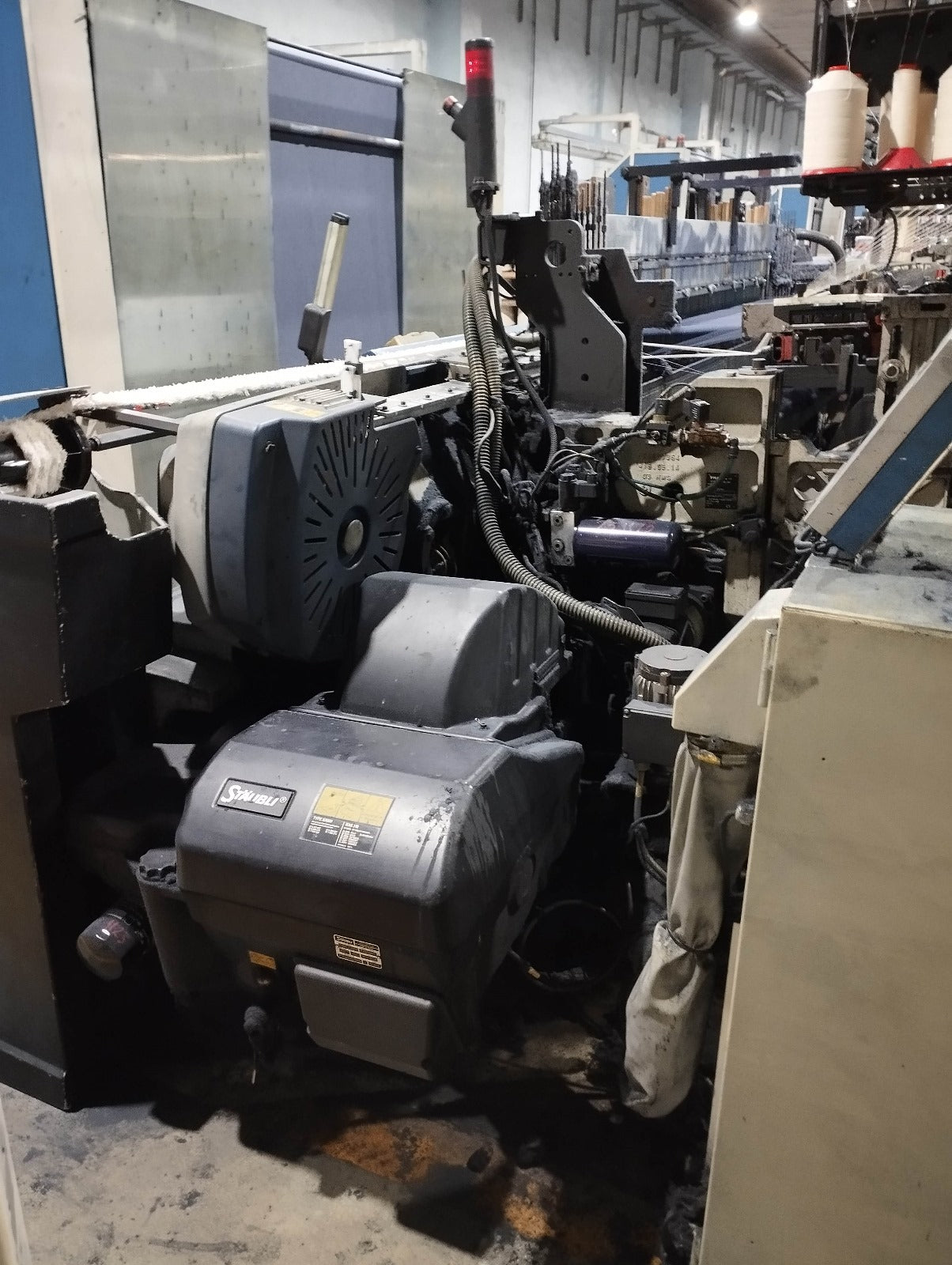

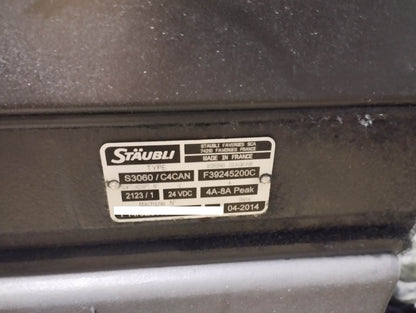

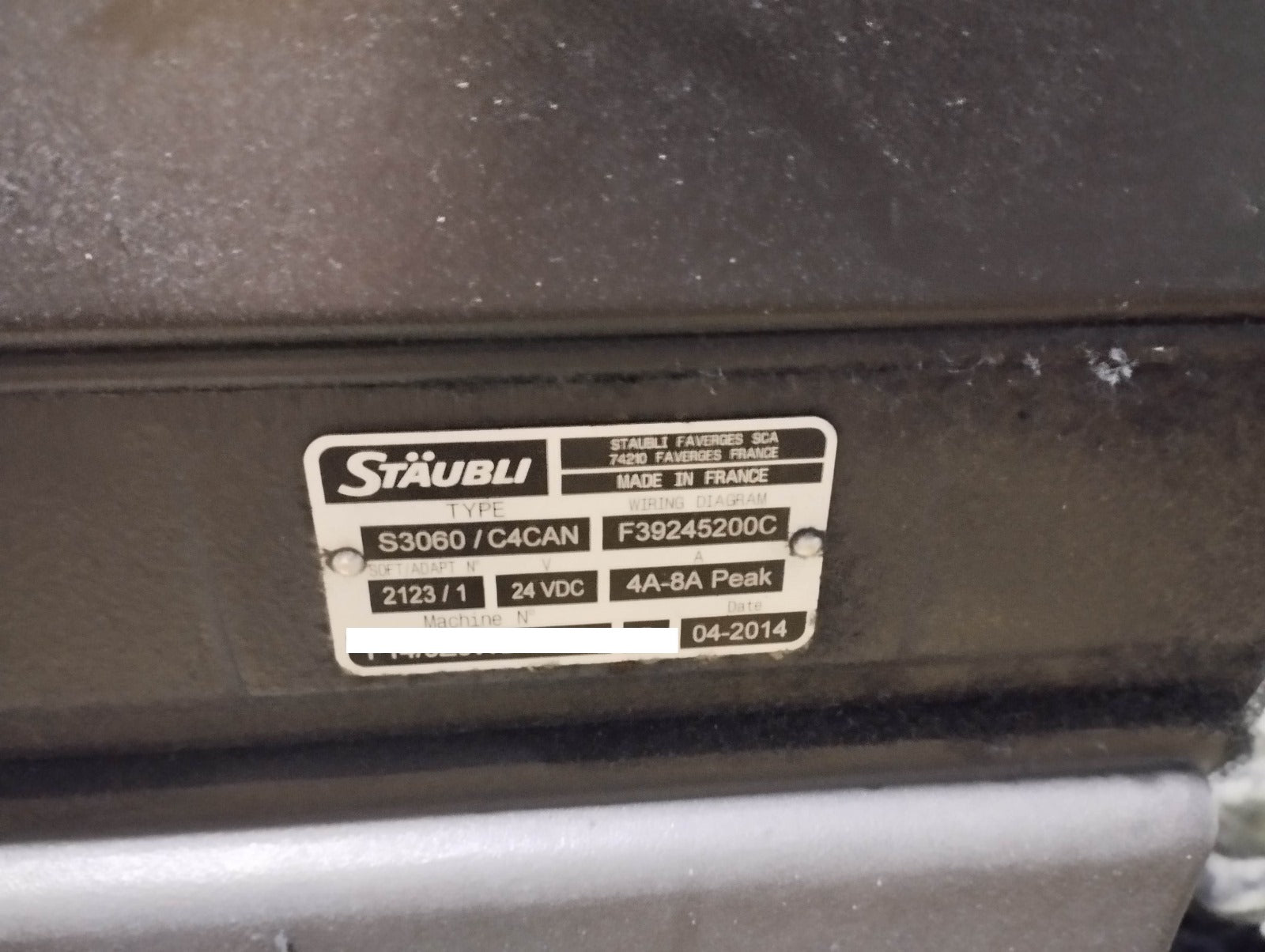

STAUBLI Dobby S3060 (dobby capacity 20 shafts)
8 sets with 14 shafts + 14 levers + 8 heald frames (14/14/8 installed)
12 sets with 12 shafts +12 levers + 8 heald frames (12/12/8 installed)

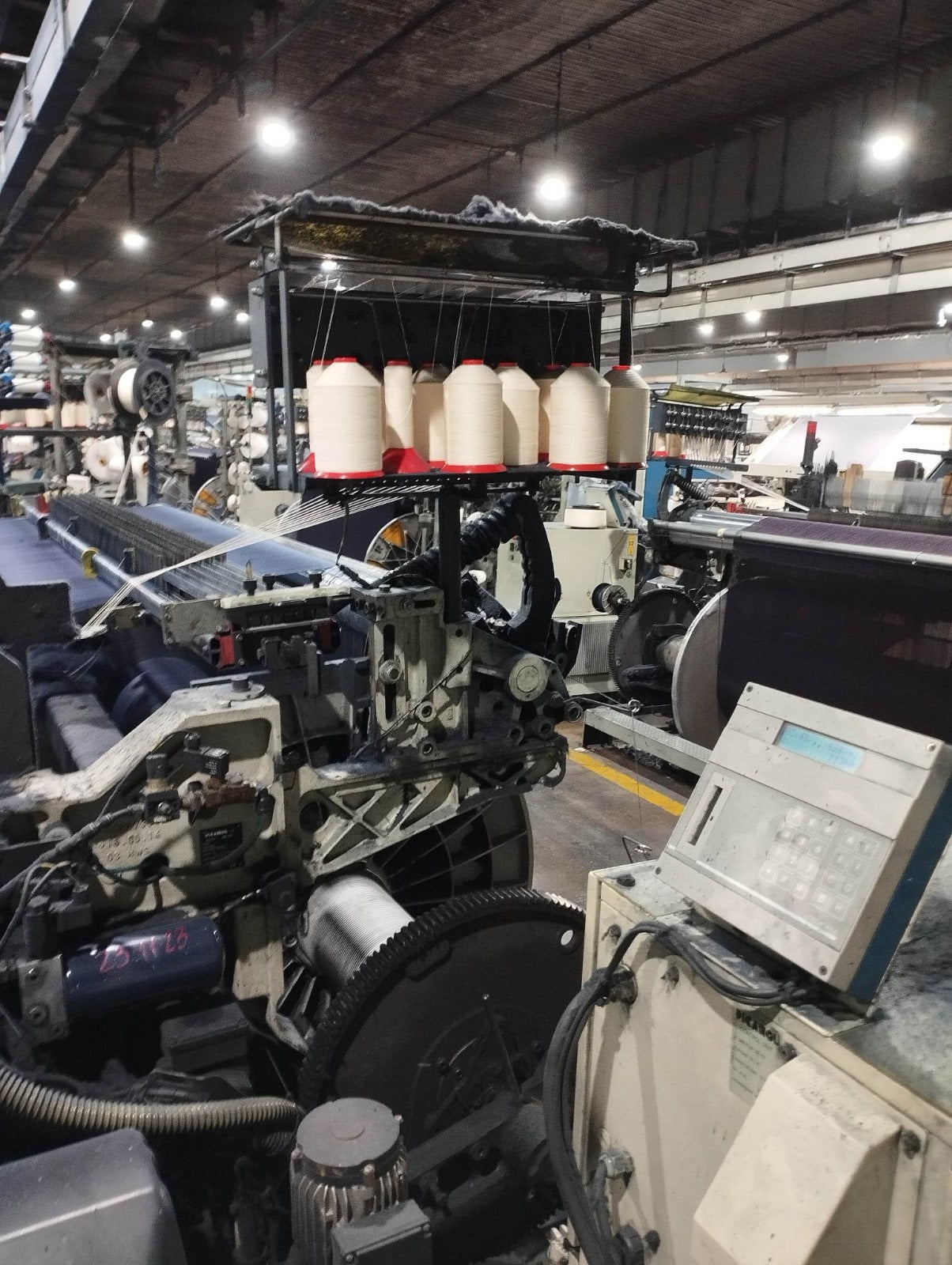

4 weft feeders
Machines originally 4 colors (plate), but they will supply 6 colours installed (fingers).
17 warp beams (1100 mm flange), 13 warp beams (1000 mm flange)
Average: 1.5 beams/machine.
Per loom:
8 heald frames / 6000 heddles / 6000 droppers

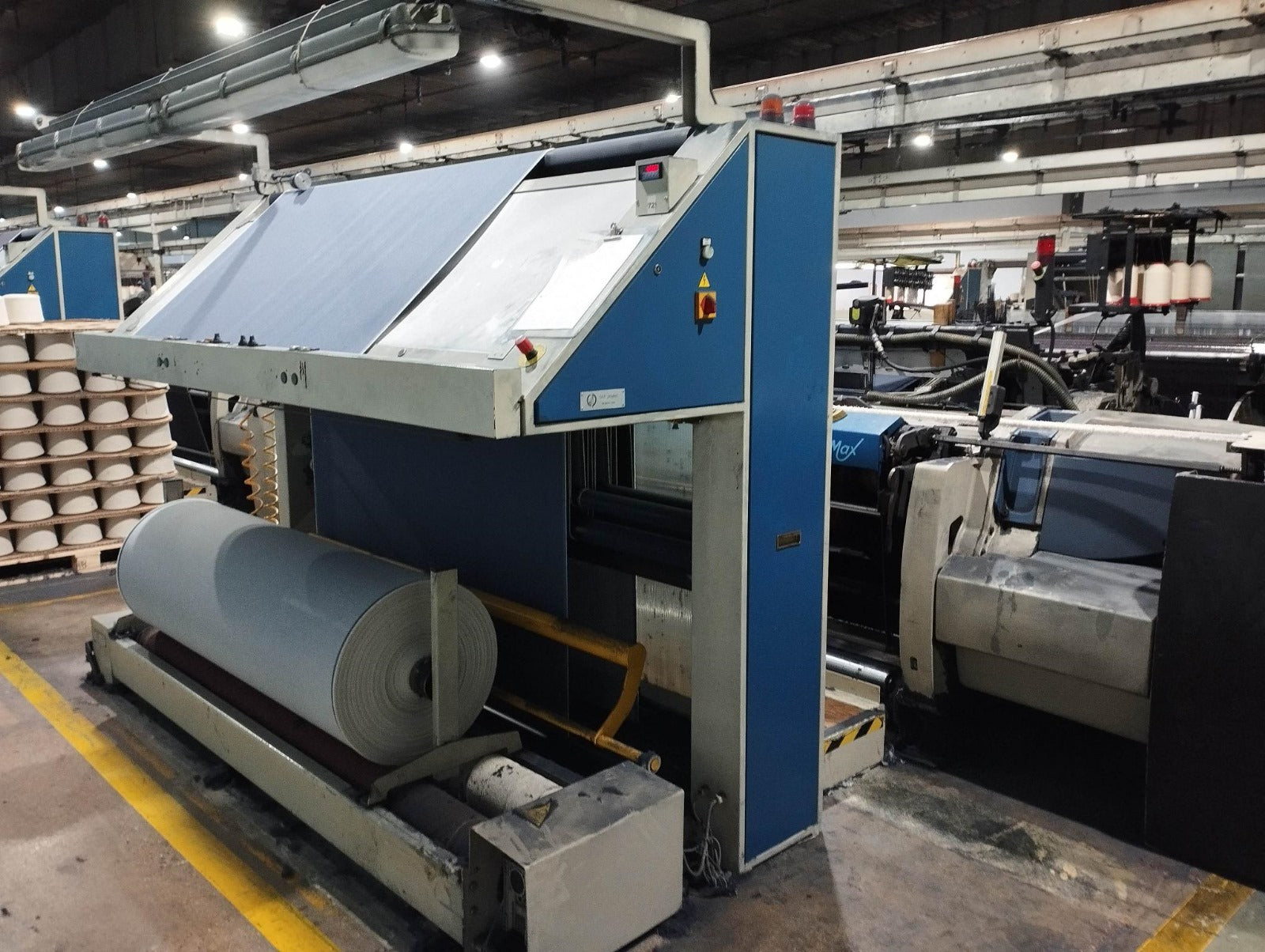

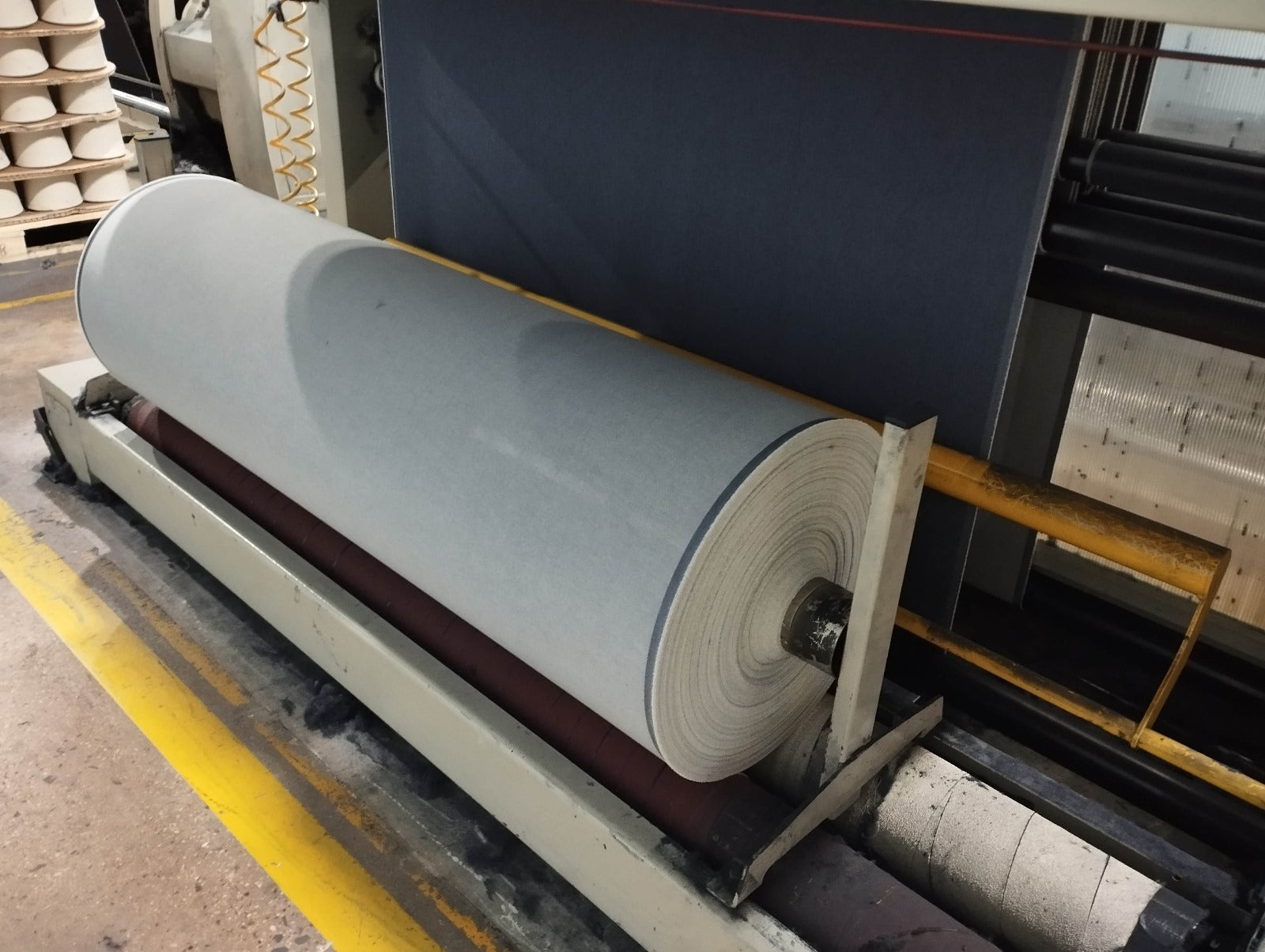

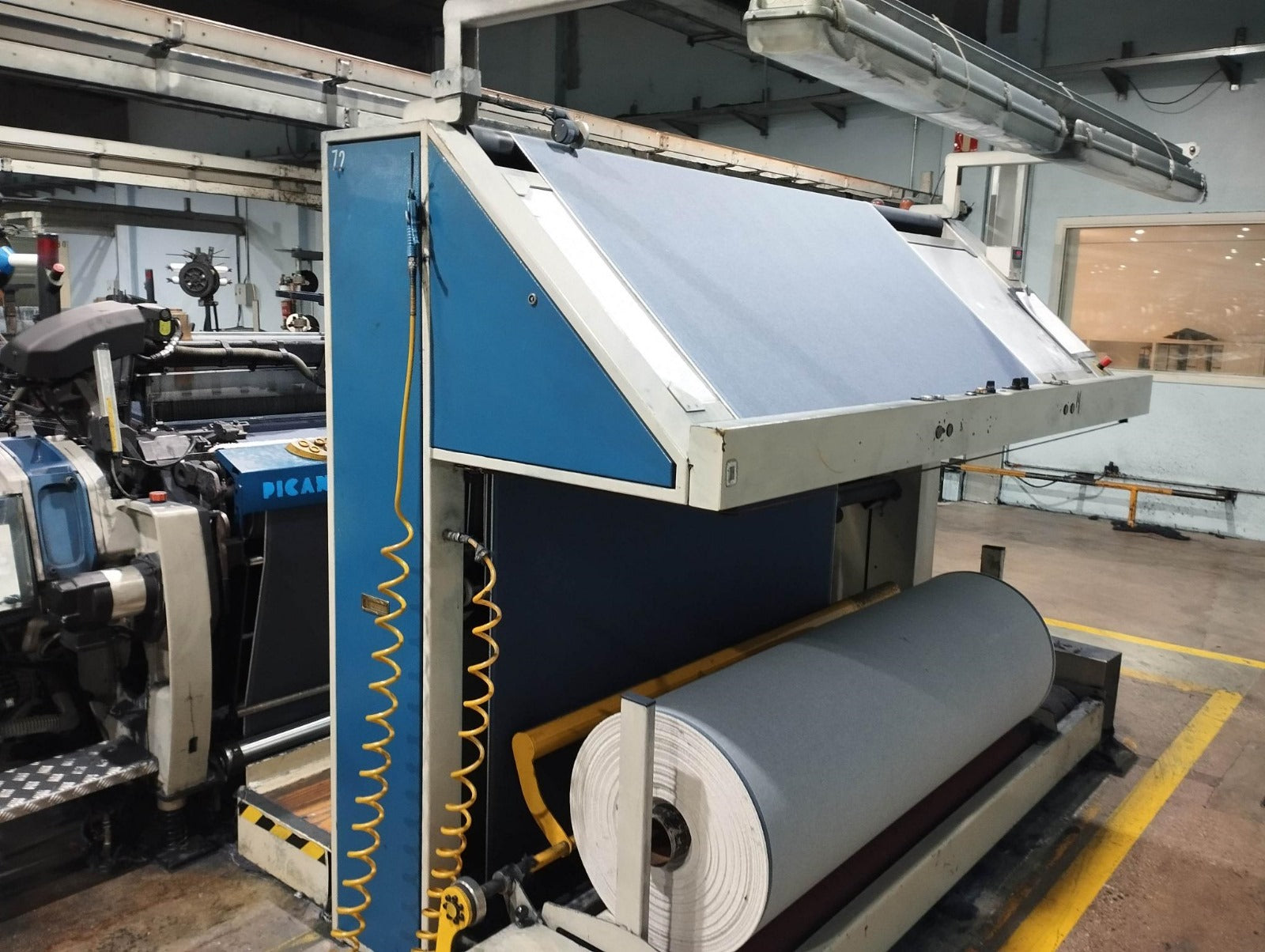

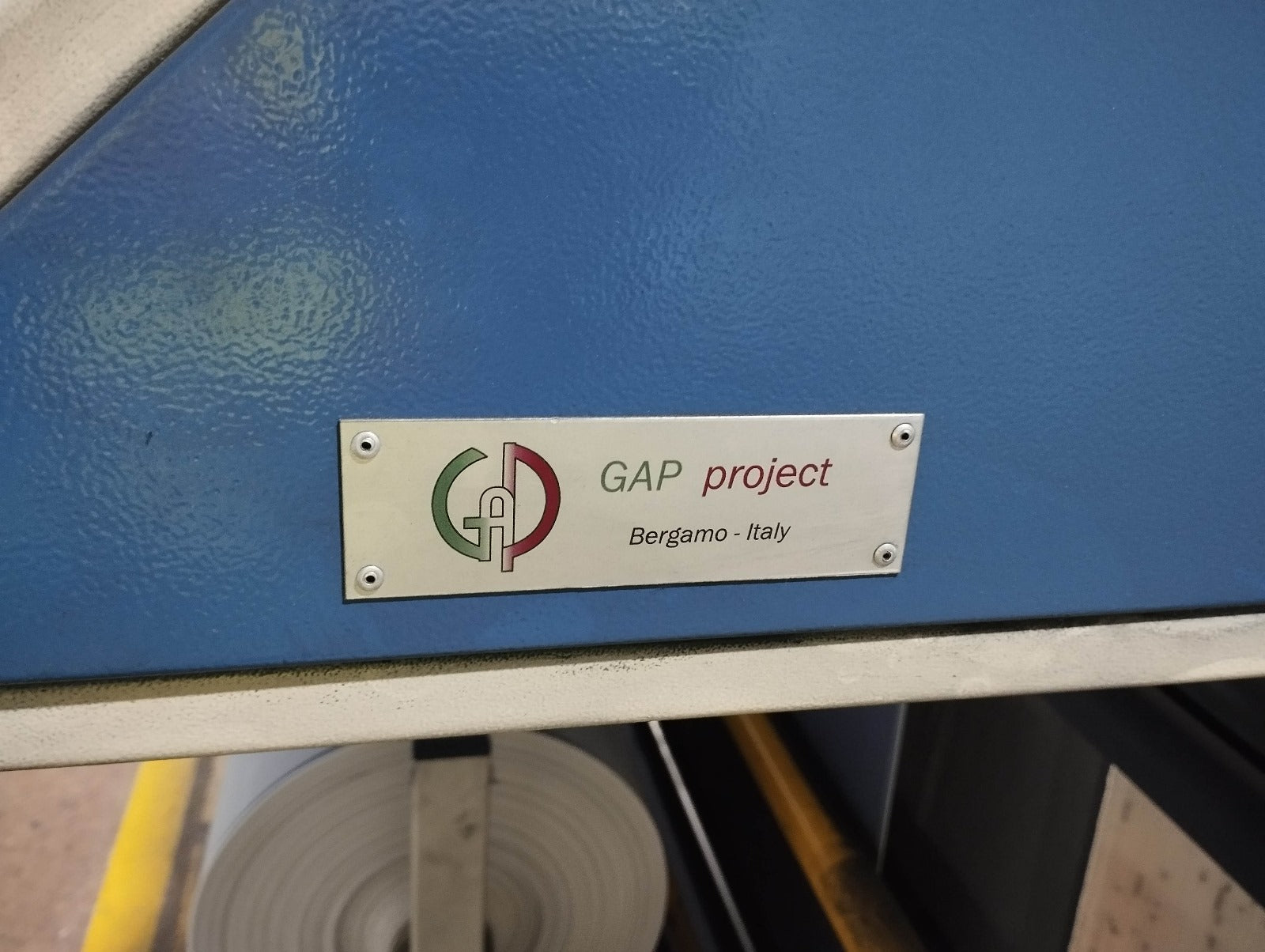

External batching with FORMIA-GAP inspection table
1 reed per loom

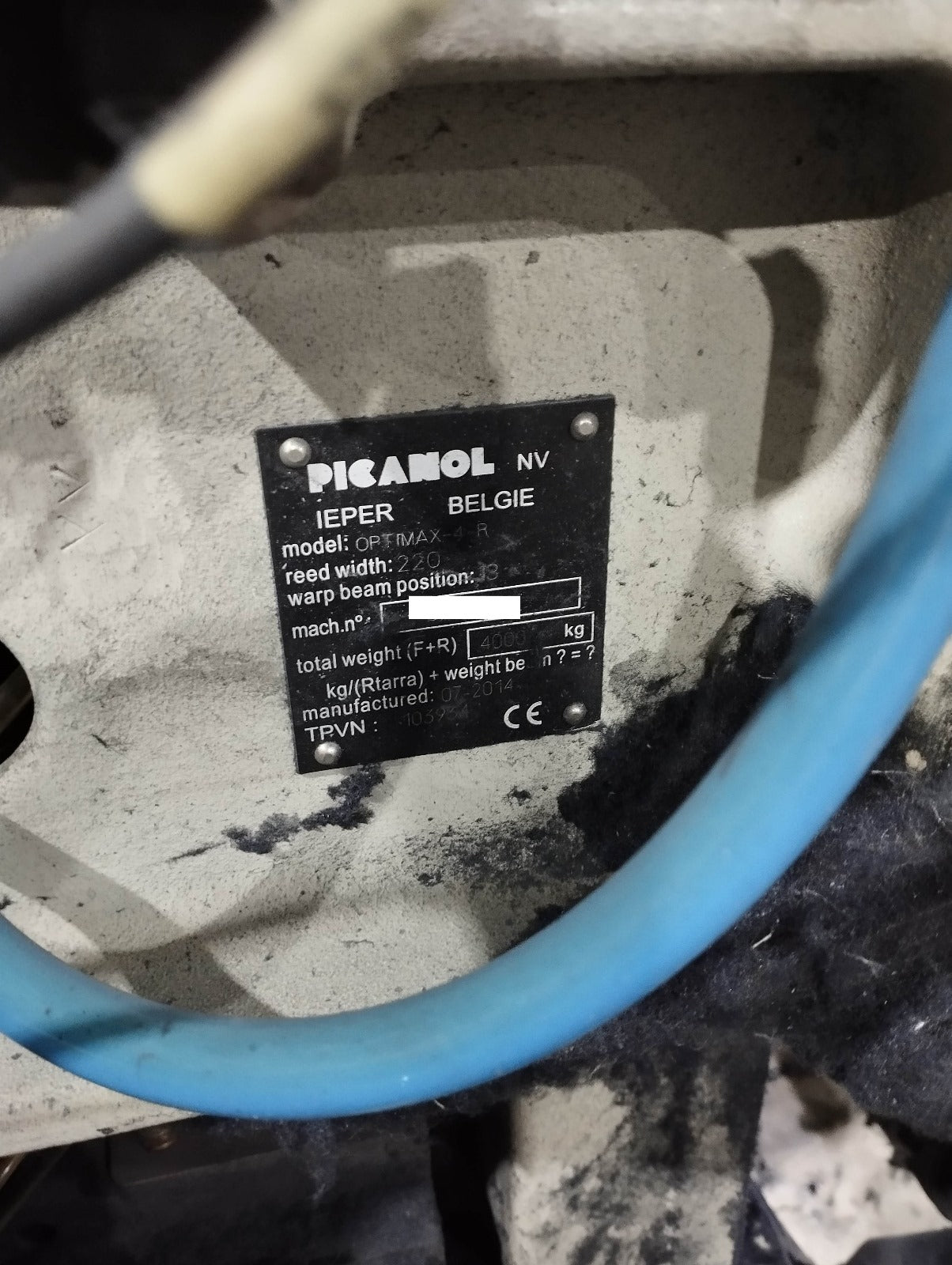

Serial Numbers: 4 sets 324xxx, 16 sets 327xxx

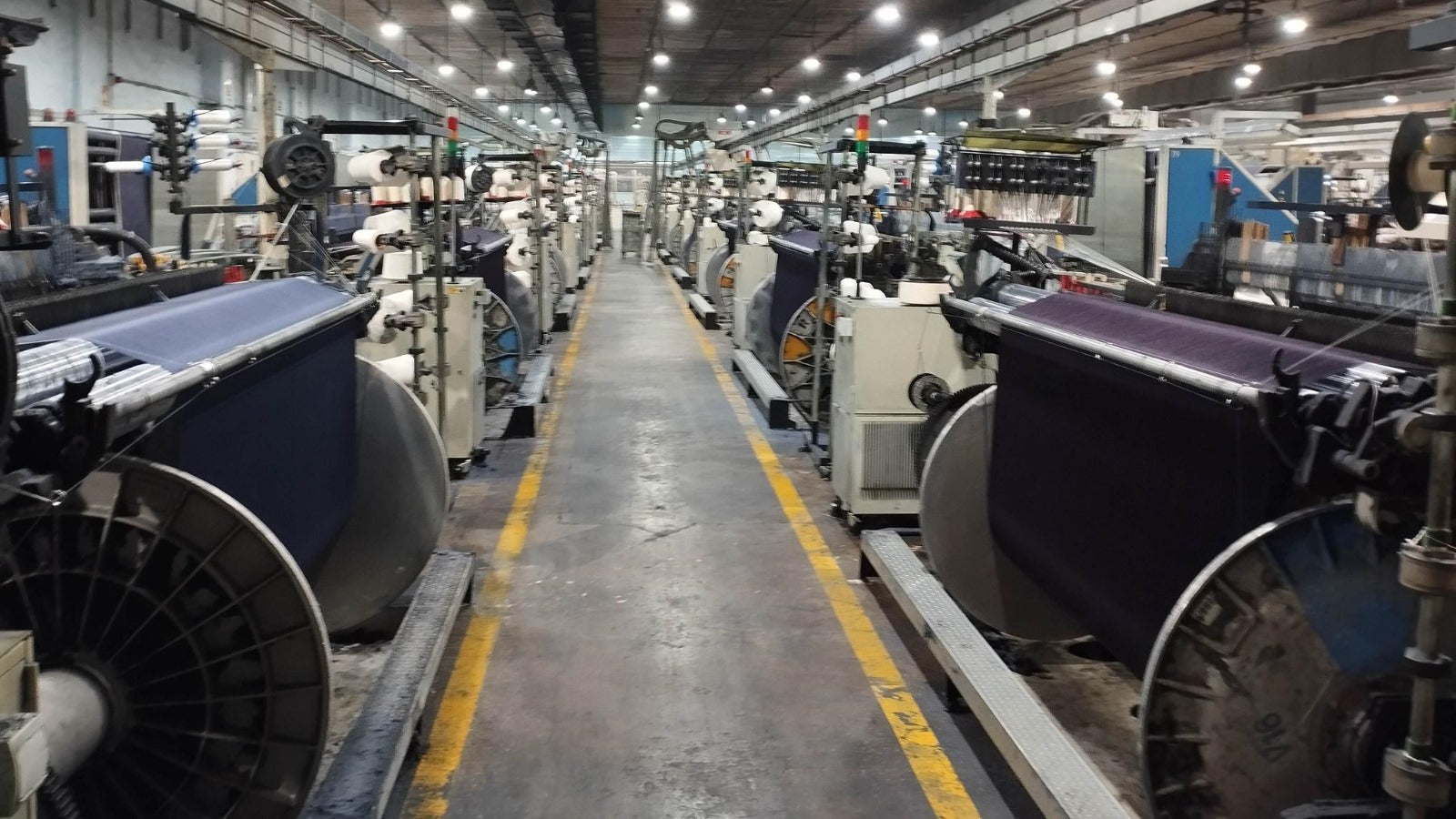

Machines are running at the moment in perfect conditions
Always using original spare parts
